Visign for Style 12 equipment set
Product information

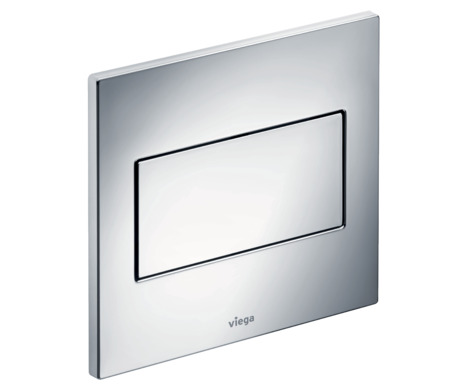

Visign for Style 12 equipment set
for Viega urinal flushing system Visign installation set
| Year built (from): | 01-07-2007 |
Trade mark rights exist for this document, further information can be found at viega.com/legal .
Target groups
The information in this instruction manual is directed at the following groups of people:
Heating and sanitary professionals and trained personnel
SHK-FachkräfteOperators
Consumers
It is not permitted for individuals without the abovementioned training or qualification to mount, install and, if required, maintain this product. This restriction does not extend to possible operating instructions.
The installation of Viega products must take place in accordance with the general rules of engineering and the Viega instructions for use.
Labelling of notes
Warning and advisory texts are set aside from the remainder of the text and are labelled with the relevant pictographs.
DANGER!
This symbol warns against possible life-threatening injury.
WARNING!
This symbol warns against possible serious injury.
CAUTION!
This symbol warns against possible injury.
NOTICE!
This symbol warns against possible damage to property.
INFO!
Notes give you additional helpful tips.
About this translated version
This instruction for use contains important information about the choice of product or system, assembly and commissioning as well as intended use and, if required, maintenance measures. The information about the products, their properties and application technology are based on the current standards in Europe (e. g. EN) and/or in Germany (e. g. DIN/DVGW).
Some passages in the text may refer to technical codes in Europe/Germany. These should serve as recommendations in the absence of corresponding national regulations. The relevant national laws, standards, regulations, directives and other technical provisions take priority over the German/European directives specified in this manual: The information herein is not binding for other countries and regions; as said above, they should be understood as a recommendation.
Standards and regulations
The following standards and regulations apply to Germany / Europe. National regulations can be found on the relevant web site of your country at viega.com/standards .
Regulations from section: Technical data
Scope / Notice | Regulations applicable in Germany |
|---|---|
Flush flow | DIN 3265 |
Noise class | DIN 4109 |
Product description
Overview

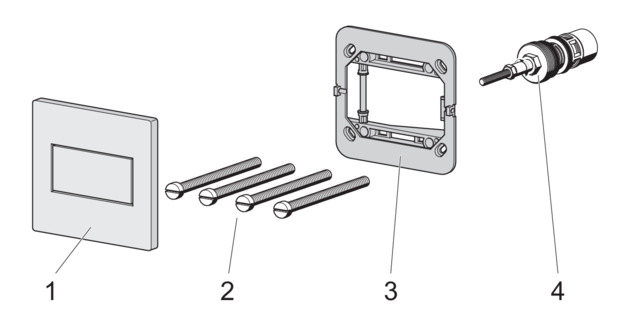

- 1 - flush plate
- 2 - fixing screws
- 3 - basic panel
- 4 - cartridge valve
Technical data
The product has the following technical data:
Minimum flow pressure |
|---|
Flush flow, see Regulations from section: Technical data |
Noise class, see Regulations from section: Technical data |
0.05–0.5 MPa (0.5–5 bar) |
0.3–0.7 l/s |
Class 2 |
Handling
Assembly
Insert cartridge valve
Requirements:
the pre-wall element has been mounted
the tiling work is completed.
the revision opening is freely accessible
the urinal ceramic has been mounted
-

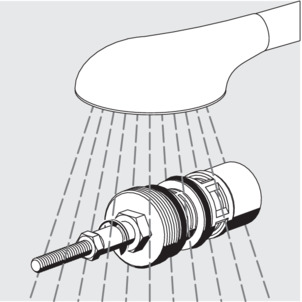

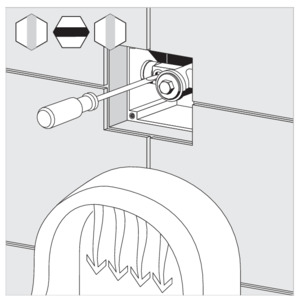

Open the shut-off with a screw driver for a few seconds to rinse the pipeline.
-
Re-close shut-off.
-

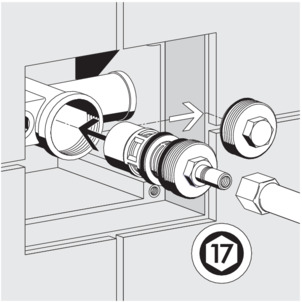

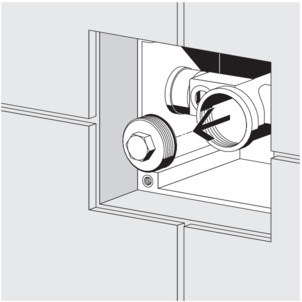

Remove seal (SW 17).
-

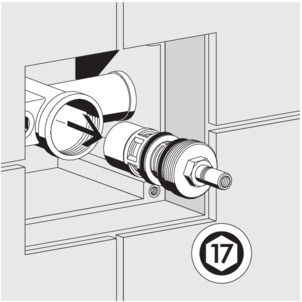

Place the cartridge valve on straight and carefully screw in (fine thread).
-
Screw in cartridge valve (SW 17).
-

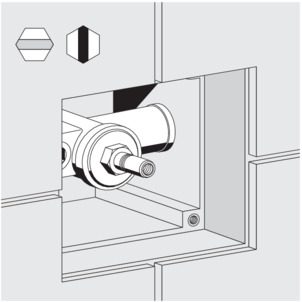

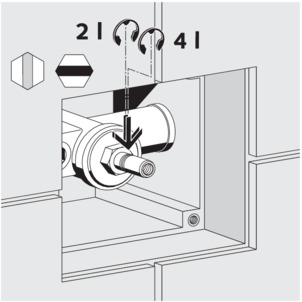

Set flush volume.
inside position: 2 l
outside position: 4 l
-
Open shut-off valve.
Mounting the basic panel
In the next step, the basic panel of the flush plate must be mounted.
Requirements:
The installation duct is ready for installation.
The cartridge valve is mounted and set.
-

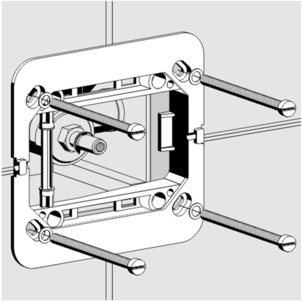

Screw on basic panel loosely.
-
Align basic panel horizontally and tighten screws.
Mounting the flush plate
Requirements:
The cartridge valve is mounted and set.
The basic panel has been mounted.
-

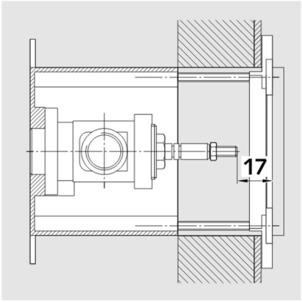

Determine the length of the actuating rod. The tip of the rod must lie 17 mm behind the front edge of the basic panel.
-

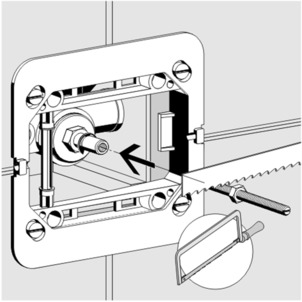

Shorten the actuating rod with a saw.
-
Turn the actuating rod into the cartridge and counter with the threaded nut.
-

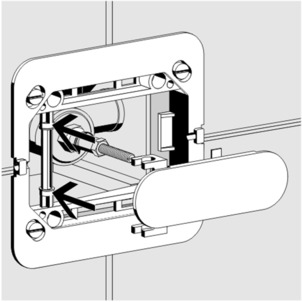

Place the actuator onto the basic panel.
INFO!Figure shows model 8331.2 as an example.
-

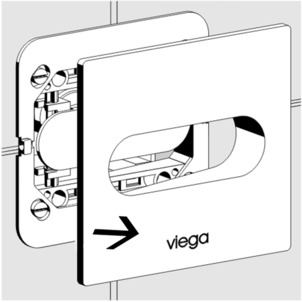

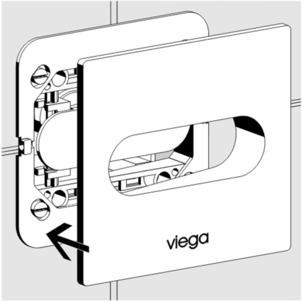

Place the flush plate onto the basic panel.
INFO!Figure shows model 8331.2 as an example.
Faults, faults and remedy
Error |
|---|
Urinal does not flush |
Flush is too weak |
Urinal flush runs through |
Cause | Remedy |
|---|---|
Shut-off valve closed | Open shut-off valve |
Cartridge valve dirty or damaged | Clean cartridge valve, if necessary, replace Cleaning cartridge valve |
Shut-off valve is not open far enough | Open shut-off valve |
Cartridge valve dirty or damaged | Clean cartridge valve, if necessary, replace Cleaning cartridge valve |
Cartridge valve dirty or damaged | Clean cartridge valve, if necessary, replace Cleaning cartridge valve |
Care and maintenance
Maintenance tips
Normal soap or a mild cleaning agent can be used for regular care and prevention of lime scale on the flush plate. Under no circumstances should scouring agent or scratching objects be used.
Strong stains can be removed using typical household cleaner. Rinse the detergent thoroughly with clear water after the prescribed exposure time. There should be no residue on the components.
Cleaning cartridge valve
The cartridge valve may be cleaned, if necessary. Proceed as follows:
-
Remove the flush plate and actuator from the basic panel.
INFO!Figure shows model 8331.2 as an example.
-
Close shut-off.
-
Unscrew cartridge valve.
-
Rinse cartridge valve under running water.
Remove coarse dirt with a soft brush.
-
Re-mount cartridge valve and flush plate in acc. with Insert cartridge valve Mounting the flush plate .
Disposal
Separate the product and packaging materials (e. g. paper, metal, plastic or non-ferrous metals) and dispose of in accordance with valid national legal requirements.
