Advantix balcony/terrace drain base unit
Product information
Advantix balcony/terrace drain base unit
| Year built (from): | 01-01-1996 |
Trade mark rights exist for this document; for further information, go to viega.com/legal .
Target groups
The information in this instruction manual is directed at the following groups of people:
Heating and plumbing experts and trained personnel
Consumers
Individuals without the abovementioned training or qualification are not permitted to mount, install and, if required, maintain this product. This restriction does not extend to possible operating instructions.
The installation of Viega products must take place in accordance with the general rules of engineering and the Viega instructions for use.
Labelling of notes
Warning and advisory texts are set aside from the remainder of the text and are labelled with the relevant pictographs.
DANGER!
This symbol warns of possible life-threatening injury.
WARNING!
This symbol warns of possible serious injury.
CAUTION!
This symbol warns of possible injury.
NOTICE!
This symbol warns of possible damage to property.
INFO!
This symbol gives additional information and hints.
About this translated version
This instruction for use contains important information about the choice of product or system, assembly and commissioning as well as intended use and, if required, maintenance measures. The information about the products, their properties and application technology are based on the current standards in Europe (e.g. EN) and/or in Germany (e.g. DIN/DVGW).
Some passages in the text may refer to technical codes in Europe/Germany. These should serve as recommendations in the absence of corresponding national regulations. The relevant national laws, standards, regulations, directives and other technical provisions take priority over the German/European directives specified in this manual: The information herein is not binding for other countries and regions; as said above, they should be understood as a recommendation.
Standards and regulations
The following standards and regulations apply to Germany / Europe and are provided as a support feature.
Regulations from section: Sealing
Scope / Notice | Regulations applicable in Germany |
|---|---|
Stress class of the underground, as well as suitable bonded sealing | Leitfaden zur Abdichtung im Verbund (AIV) |
Approved bonded sealings with proof of practicability in keeping with building law for stress classes A and AO | ETAG 022 T1 |
Approved bonded sealings with proof of practicability in keeping with building law for stress classes A, B and C | DIBt-Bauregelliste A, Teil 2 des DIBt und Prüfgrundsätze für Abdichtungen im Verbund (PG AIV-F) |
Permitted bonded sealings | EN 14891 |
Regulations from section: Media
Scope / Notice | Regulations applicable in Germany |
|---|---|
Typical domestic wastewater | DIN 1986‑3 |
Certification
Data acc. to DIN EN 1253, Table 7
Manufacturer | Viega GmbH & Co.KG |
Manufacturer identification mark |  |
Certificate of conformity |  |
Address | Viega GmbH & Co.KG |
Relevant standard | DIN EN 1253‑2 |
DN | 50/70/100 |
Product class with respect to temperature behaviour | A |
Product description
Overview

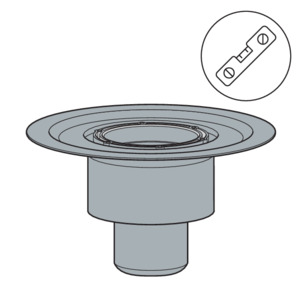

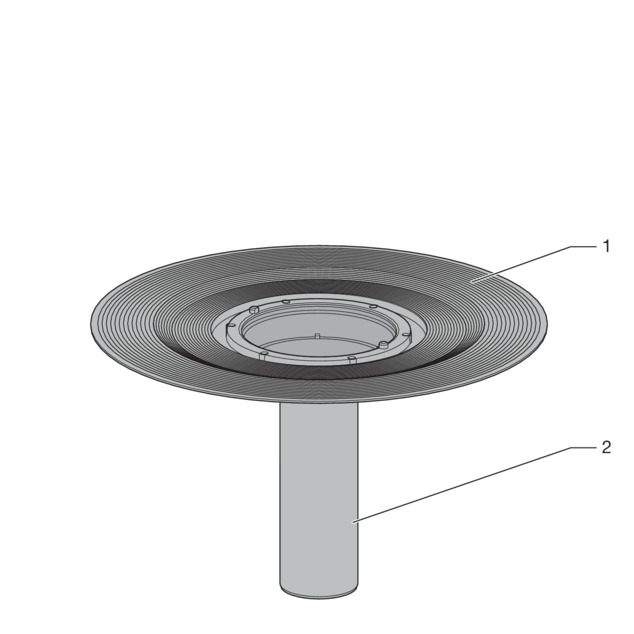

- 1 flange for the application of the conventional sealing
- 2 Base unit
Technical data
Nominal width [DN] (drain socket) Nennweite [DN]Ablaufstutzen |
|---|
Drainage capacity |

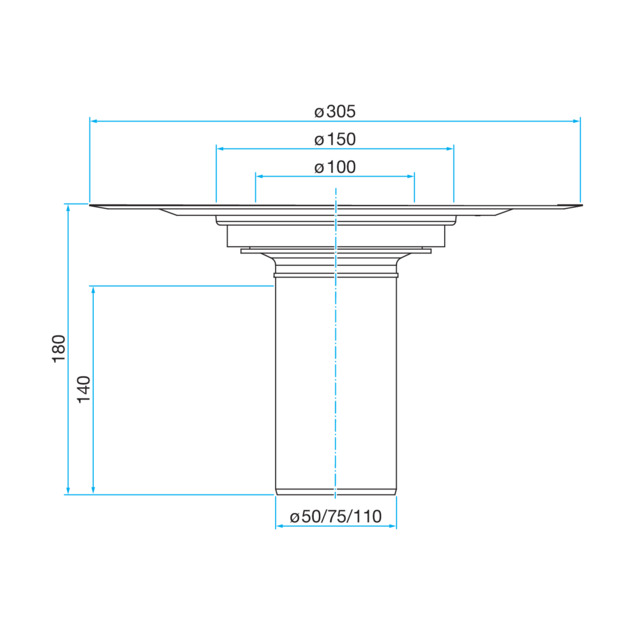

Dimensions and installation height |
Load class Belastungsklasse |
Article 295 936 | Article 557 270 | Article 626 976 |
|---|---|---|
50 | 70 | 100 |
corresponds with the load class of the top used | corresponds with the load class of the top used | corresponds with the load class of the top used |
Information for use
Installation variations

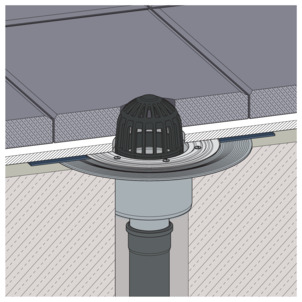

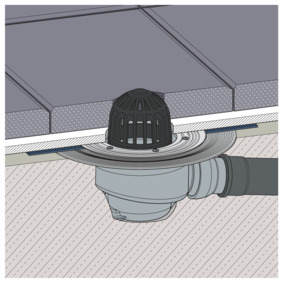

Mounting in bare concrete
The mounting of the drain in bare concrete is as follows:
The drain is placed in a floor recess and then cast-in.
The drain is placed over a floor lead-in (e.g. of a drill hole), through which the drainpipe is led.
Mounting with a second sealing level

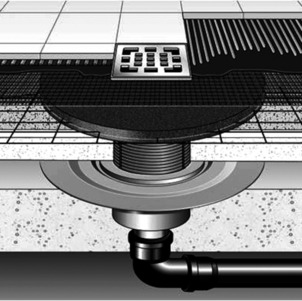

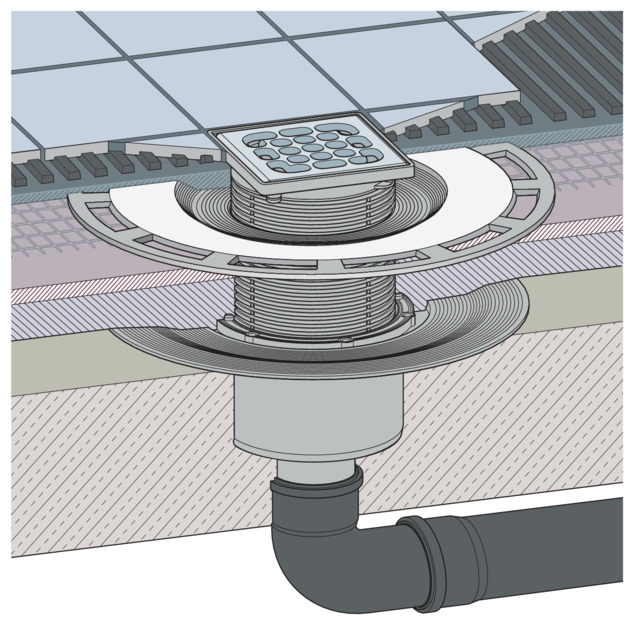

The drain is given a stacking element and sealed via a sealing flange made of polymer concrete.
Sealing
The drain can be sealed both conventionally as well as with bonded sealing.
Depending on the type of sealing, you will require the relevant equipment set Required accessories .
Conventional sealing

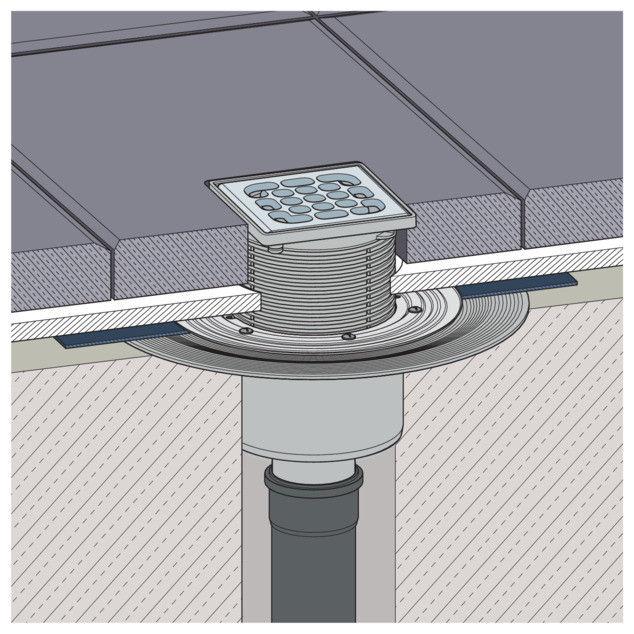

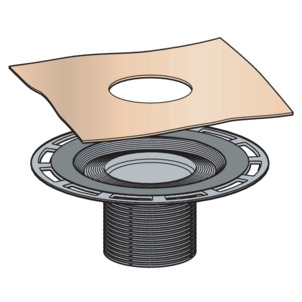

The flange of the drain is intended for conventional sealing. To be able to seal the drain conventionally, you require a suitable sealing collar and a clamping ring with which the cuff is secured Required accessories .
Principle
Traditionally, sealing is made using bitumen or EPDM sealing collars. The sealing collars are laid directly onto the raw concrete or heat insulation. This process has proved itself to be particularly effective for sealing balconies, patios, floor installation panels and cellar floors. In addition, sealing collars are often used as an additional second sealing layer below the bonded seal.
The following components are required for the installation of a drain with conventional sealing:
Drain
Clamping ring with sealing collar for EPDM and bitumen sealing lanes
Information for processing
The sealing collar is coated with EPDM on the one side and with bitumen on the other side
Place the sealing collar on the drain and fasten it with the flange. It depends on the sealing collar used which material layer of the sealing collar is placed facing up. You can find more information in the mounting instructions of the sealing flange.
Bonded sealing
To protect against moisture penetration, apply sealing foils, which are to be processed in liquid state, directly below the tiles on screed and walls. The determination of the stress class and the underground as well as the selection of the suitable bonded sealing must be carried out in compliance with the valid standards and regulations, see: Standards and regulations .
Bonded sealing can be carried out with the help of a suitable stacking element. You have the possibility to double seal, using conventional and bonded sealing or only using bonded sealing.
Permitted bonded seals
In connection with suitable drains, only approved bonded sealings with proof of practicability in keeping with building law may be used. See Standards and regulations .
Information regarding the procedure can be found in the instructions for use of the corresponding product.
Required accessories
Top
A top or a pebble trap must be purchased separately to complete the mounting of the drain.
A top or a pebble trap must be purchased separately to complete the mounting of the drain.

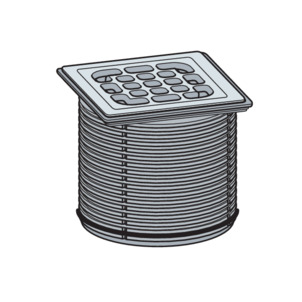

Advantix tops are available in a number of sizes and variations. You can also only buy an Advantix top frame and then purchase a suitable designer grate separately (see catalogue).

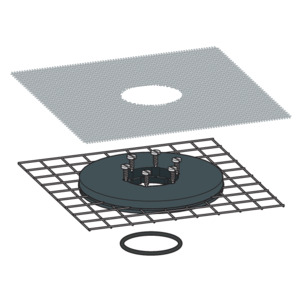

Accessories for conventional sealing
If a conventional sealing is to be made, a suitable sealing collar and a clamping ring will be required.
You will find a corresponding set in the catalogue (model 4948.31).
Accessories for bonded sealing

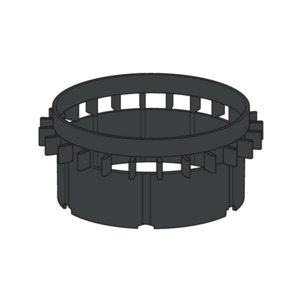

If a bonded sealing is to be applied, a suitable stacking element with sealing collar is required.
The Advantix sealing flange (model 4924) made of polymer concrete can be integrated into the floor construction to increase stability.
Odour barrier

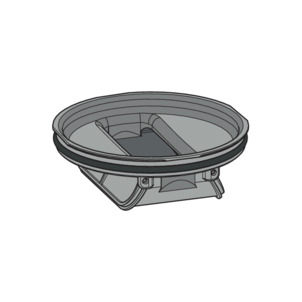

Advantix balcony and terrace drains can be equipped with the frost-proof odour barrier (model 4944.8), which closes the drain in an odour proof manner.

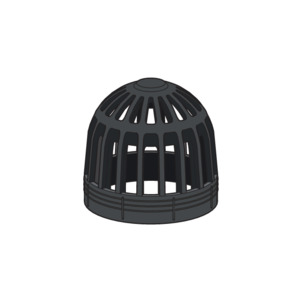

Pebble trap inlet element
The drain can be equipped with the pebble trap inlet element (model 4946.3), to divert water next to the grate through the layer of pebbles.
Handling
Assembly information
Important note
Before assembly:
Check if the drainage capacity of the drain is sufficient for the arising water volume Drainage capacity .
Check if the installation height of the drain corresponds with the planned floor construction.
Ensure that the required connection line is installed with the necessary incline to the planned installation location.
If necessary, supply the required accessories Required accessories .
During assembly:
Observe installation dimensions.
After assembly:
The drain flange must be fully lined with mortar.
Installation dimensions
Tools and materials
Required material
Pebble trap or top with grate, if not included in scope of delivery
Material for securing the drain
Assembly
Connecting the drain
Connecting to the wastewater system
The connection to the wastewater system must be completed before the drain can be installed in the floor construction. Proceed as follows:
Requirements:
A pipe to the planned drainage position is already in place for the connection to the wastewater system.
The drain pipe has an internal sealing lip.
-

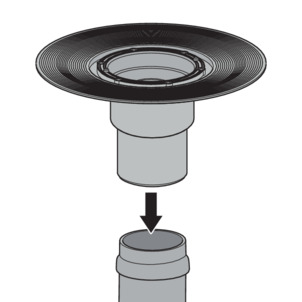

Insert the drain socket into the drainpipe as far as it will go.
Preparing for subsequent work
Requirements:
The drain is connected.
-
Position the drain at the desired height at the place of use. Depending on the planning, the drain can be integrated into concrete or into a heat insulation layer, for example. The upper edge of the drain flange must be flush with the upper edge of the sealing layer. If necessary, raise or lower the drain in the existing floor using suitable material.
-
Align the drain horizontally using a spirit level.
-
Secure the drain in such a way that it cannot shift when the subsequent works are applied.
Most importantly, it must be ensured that the drain does not float when the concrete or screed is poured in.
-

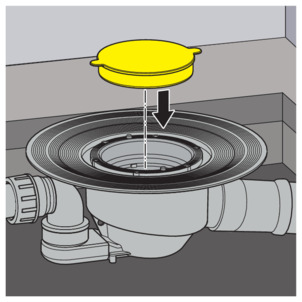

Insert the yellow protective plug.
NOTICE!
Product damage due to improper installation
If hollow spaces occur during the lining of the drain, leaks may occur when pressure is applied.
Inform the subsequent workers that the drain must be fully lined and that there must be no hollow spaces.
Sealing the drain
NOTICE!
Product damage due to improper installation
If hollow spaces occur during the lining of the drain, leaks may occur when pressure is applied.
Check the completion of the subsequent work.
Conventional sealing
Requirements:
A suitable sealing collar and a clamping ring are available.
The flange is free of heavy soil.
The complete surface of the flange is lined with material and undamaged.
-
If required, clean the flange of heavy soil (e.g. from screed).
-

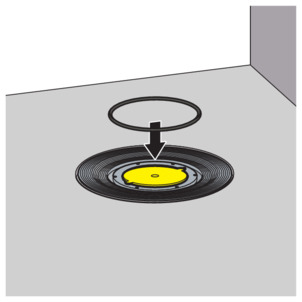

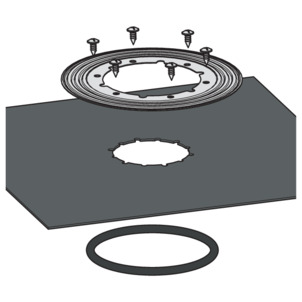

Insert the seal ring.
The seal ring must lie in the groove between the flange and the screw holes.
The Viega sealing collar has two differently coated sides. One side is coated with bitumen and the other side with EPDM. If the additional sealing takes place with bitumen sealing lanes, the sealing collar must be used with the bitumen side facing upwards. If EPDM sealing lanes are used, the EPDM side must face upwards.
-

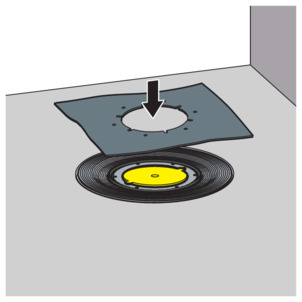

Position the sealing collar on the drain.
The screw holes must be visible through the recesses.
-
Position the sealing flange on the sealing collar in such a way that the screw holes are visible.
-

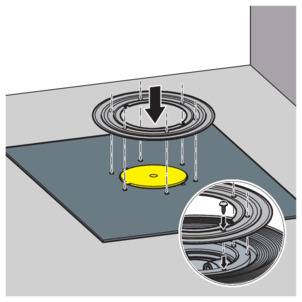

Screw the sealing flange tightly to the drain.
The fixing screws of the clamping ring may only be screwed into the screw holes of the drain.
-

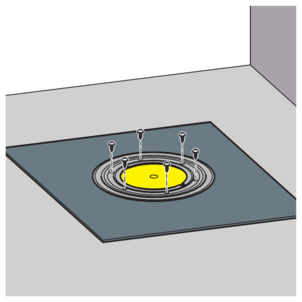

The drain is sealed and the remaining sealing can be laid.
Installing the top in the tile surface
The top with the grate may also have to be mounted to finish off the mounting of the drain. Proceed as follows:
-
Calculate the height of the floor construction from the edge in the inside of the drain up to the upper edge of the floor.
INFO!If you use a pebble trap inlet element, position it on the drain and calculate the height from the edge in the inside of the pebble trap inlet element.
-
Starting with the upper edge, transfer the measured height onto the top.
-
Cut the top to the marked height.
-

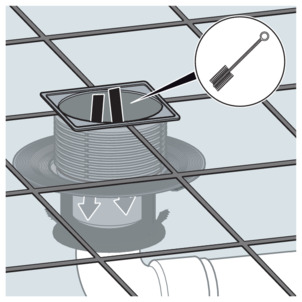

Remove the yellow protective plug.
-

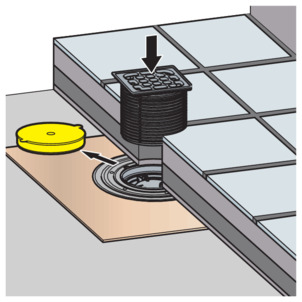

Place the top into the drain and align according to the tiles.
-
Work the top into the floor covering.
Care
Care tips
Normal soap or a mild cleaning agent can be used for regular maintenance and prevention of lime scale on the grate and frame. Use no scouring agent or abrasive objects.
Strong stains, even around the drain unit and the odour trap, can be removed using typical household cleaner. Rinse the detergent very thoroughly with clear water after the prescribed dwell time. There should be no residue on the components.
Cleaning the drain
Use a mild cleaning agent and a washing-up brush for cleaning.
-

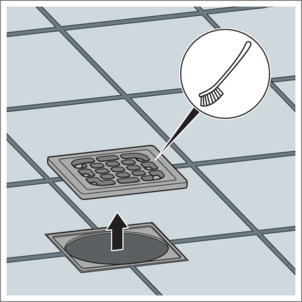

Remove and clean the grate or pebble trap.
-
Clean the drain.
-
Re-insert the grate or pebble trap.
Disposal
Separate the product and packaging materials (e. g. paper, metal, plastic or non-ferrous metals) and dispose of in accordance with valid national legal requirements.
