Advantix shower channel grate Visign ER12
Product information
Advantix shower channel grate Visign ER12
For inserting surface of tiles or natural stone at any height
| Year built (from): | 29. 4. 2016 |
Trade mark rights exist for this document; for further information, go to viega.com/legal .
Target groups
The information in this instruction manual is directed at the following groups of people:
Heating and sanitary professionals and trained personnel
SHK-Fachkräfte
Individuals without the abovementioned training or qualification are not permitted to mount, install and, if required, maintain this product. This restriction does not extend to possible operating instructions.
The installation of Viega products must take place in accordance with the general rules of engineering and the Viega instructions for use.
Labelling of notes
Warning and advisory texts are set aside from the remainder of the text and are labelled with the relevant pictographs.
DANGER!
This symbol warns of possible life-threatening injury.
WARNING!
This symbol warns of possible serious injury.
CAUTION!
This symbol warns of possible injury.
NOTICE!
This symbol warns of possible damage to property.
INFO!
This symbol gives additional information and hints.
About this translated version
This instruction for use contains important information about the choice of product or system, assembly and commissioning as well as intended use and, if required, maintenance measures. The information about the products, their properties and application technology are based on the current standards in Europe (e.g. EN) and/or in Germany (e.g. DIN/DVGW).
Some passages in the text may refer to technical codes in Europe/Germany. These should serve as recommendations in the absence of corresponding national regulations. The relevant national laws, standards, regulations, directives and other technical provisions take priority over the German/European directives specified in this manual: The information herein is not binding for other countries and regions; as said above, they should be understood as a recommendation.
Other applicable documents
This instruction for use describes the mounting of an accessory set for an Advantix Vario shower channel in rough steps.
INFO!
The instructions for use of the Advantix Vario shower channel must also be strictly observed for the mounting of the accessory set.
Certification
Data acc. to DIN EN 1253, Table 7
manufacturer | Viega Holding GmbH & Co.KG |
manufacturer identification mark |  |
Certificate of conformity |  |
Address | Viega Technology GmbH & Co.KG |
Relevant standard | DIN EN 1253‑2 |
Load class | K3 |
Product class with respect to temperature behaviour | A |
Product description

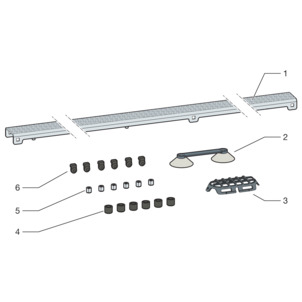

Overview
- 1 Grate
- 2 Vacuum lifter
- 3 Sieve insert
- 4 Rubber cap
- 5 Threaded feet
- 6 Plug set
Handling
Assembly information

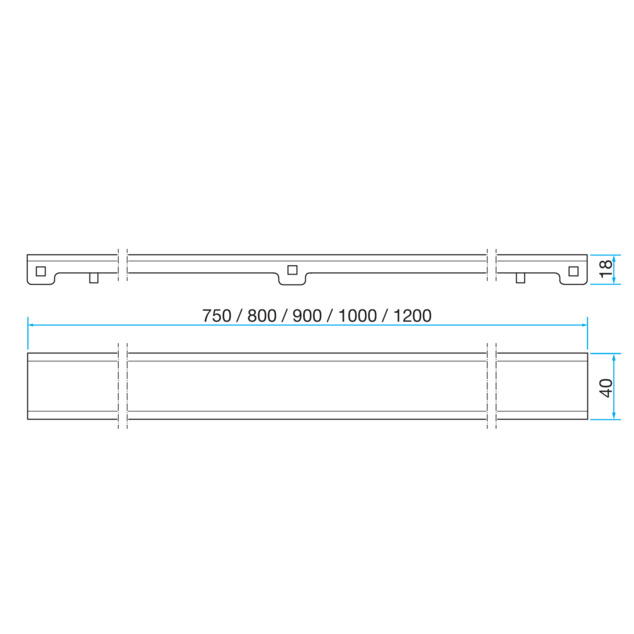

Installation dimensions
Assembly
Mounting the grate
Preparing the grate
-

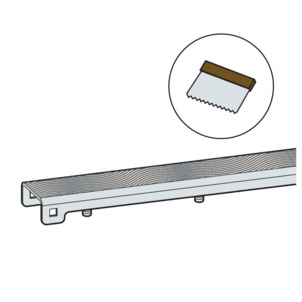

Coat the grate with tile adhesive.
-

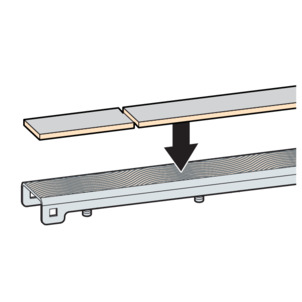

Press the cut out tiles into the tile adhesive and align parallel to the grate.
If necessary, polish the tile edges (deburr).
-

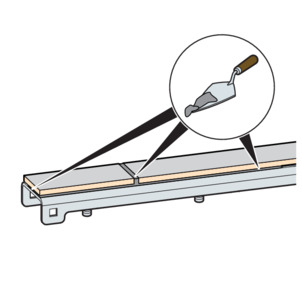

Close the gap between the tile surface and the stainless steel grate with tile adhesive.
Mounting the grate
-

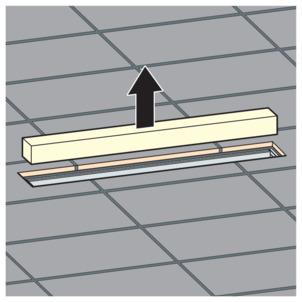

Remove the site protection.
-
Fit the sieve insert.
-

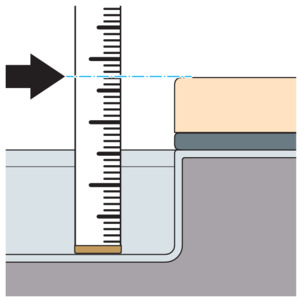

Determine the height required from the shower channel base to the upper edge of the tiles.
-

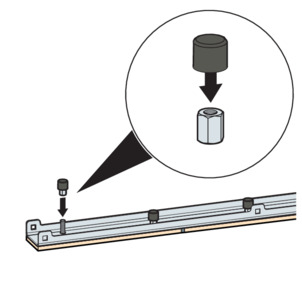

Mount the rubber caps.
-
Screw the spacer for the height adjustment of the grate onto the threaded pins.
With nut M5x8 from 6‑10 mm.
With nut M5x12 from 8‑15 mm.
-

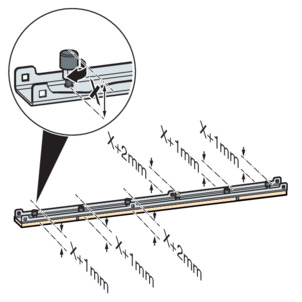

Set the distance using the threaded feet.
For flooring heights from 6‑15 mm.
-
Insert the plug.
-

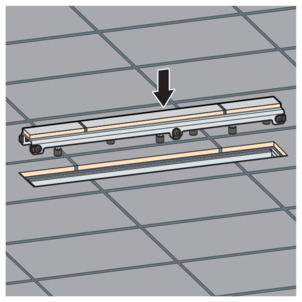

Insert the grate and, if necessary, adjust slightly.

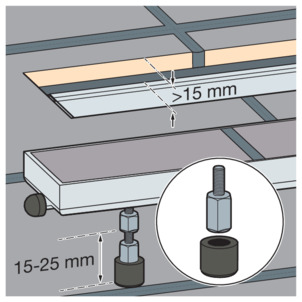

For flooring heights greater than 15 mm, use extension set (model497.10)).
-

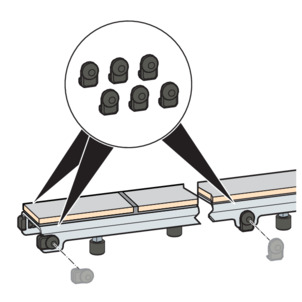

Mount the additional threaded feet.
Care
NOTICE!
Risk of damage due to unsuitable cleaning agent.
The following cleaning agents can damage chrome-plated surfaces and therefore may not be used:
Scouring agent
Abrasive sponges
Lime, plaster or cement dissolver
Solvents or other acidic cleaning agents
Normal soap or a mild cleaning agent can be used for regular care and prevention of lime scale. Under no circumstances should scouring agent or scratching objects be used.
Strong stains, even around the drain unit and the siphon, can be removed using typical household cleaner. Please note that the cleaning agent must be rinsed off thoroughly with clear water after the prescribed soaking time. There should be no residue on the components.
Disposal
Separate the product and packaging materials (e. g. paper, metal, plastic or non-ferrous metals) and dispose of in accordance with valid national legal requirements.
